The Workflow Editor is where you build, test, and refine AI workflows. This page covers everything from basic canvas navigation to advanced features like node bypass and auto layout.
New to NodeTool? Start with the Getting Started guide to run your first workflow, then come back here to learn the editor in depth.
Want every panel explained? See Editor Panels for a deep dive on the left, right, bottom, and floating panels.
Editor Layout
| Area | Where | What It Does |
|---|---|---|
| Canvas | Center | Place and connect nodes |
| Side Panels | Left/Right | Workflows, assets, settings |
| Toolbar | Bottom | Run, save, layout controls |
Canvas Basics
Your infinite workspace.
Navigate:
| Do This | How |
|---|---|
| Pan | Space + drag, or right-click drag |
| Zoom | Ctrl/⌘ + scroll |
| Fit everything | F |
| Reset zoom | Ctrl/⌘ + 0 |
The grid helps align nodes. Turn on Snap to Grid in View menu.
Working with Nodes
Each node does one thing.
Add Nodes
Space bar:
- Press
Spaceanywhere - Type what you want (“image”, “text”)
- Click to add
Double-click:
- Double-click empty space
- Opens node menu
Smart connect:
- Drag from a node’s output
- Drop on empty space
- See compatible nodes
Node Structure
- Header (top) - Name, drag to move
- Inputs (left circles) - Data in
- Outputs (right circles) - Data out
- Properties - Settings panel
Select Nodes
| Do This | How |
|---|---|
| One | Click it |
| Multiple | Shift + click, or drag box |
| All | Ctrl/⌘ + A |
| None | Click canvas |
Move Nodes
- Drag header to move
- Arrow keys to nudge
- Auto Layout button to organize
Bypass Nodes
Skip temporarily without deleting:
- Right-click node
- Select Bypass Node
- Node dims, data passes through
Good for:
- Testing - Compare with/without
- Debugging - Isolate problems
- A/B testing - Toggle effects
Re-enable: Right-click → Enable Node
Result Overlays
Nodes show outputs on canvas:
- Images - Thumbnail preview
- Text - Text snippet
- Audio - Waveform
- Progress - Live status
Connections
Connections are the lines between nodes that show how data flows through your workflow. Data always flows left to right — from output ports (right side of a node) to input ports (left side of another node).
Make Connections
- Click output circle (right side)
- Drag the line to an input circle (left side of another node)
- Release to connect
Connection Rules
- Types must match: You can only connect compatible types (text to text, image to image)
- One input, multiple outputs: Each input accepts one connection; outputs can connect to many
- Color coding: Connection colors indicate data type
Removing Connections
- Click a connection line, then press
Delete - Right-click a connection for options
- Drag the connection away from its target and release
Smart Connections
When you drag a connection and release on empty space, the Connection Menu appears:
- Auto-create common nodes for that data type
- Browse compatible nodes filtered by what can receive the data
- Cancel by pressing
Esc
Running Workflows
Starting a Run
| Method | How |
|---|---|
| Button | Click Run in the bottom toolbar |
| Keyboard | Ctrl/⌘ + Enter |
Watching Progress
- Streaming nodes show output as it’s generated
- Preview nodes display intermediate results
- Node borders indicate status (running, complete, error)
- Edge animations show data flowing between nodes
Pausing and Resuming
You can temporarily pause a running workflow:
| Action | Button | Description |
|---|---|---|
| Pause | ⏸ (blue) | Temporarily stops execution - workflow state is preserved |
| Resume | ▶ (blue) | Continues from where it paused |
The pause button appears in the floating toolbar while a workflow is running.
Suspended Workflows
Some nodes (like the WaitNode) can suspend a workflow to wait for external input:
| State | Button | Description |
|---|---|---|
| Suspended | ▶ (purple) | Workflow is waiting for input - click to resume |
When a workflow is suspended:
- A notification shows why the workflow is waiting
- The purple Resume button appears in the toolbar
- Click Resume to continue the workflow with any required data
- The workflow can be stopped (cancelled) if no longer needed
Suspended workflows are useful for:
- Human-in-the-loop approvals
- Waiting for external data or API responses
- Checkpoint-based processing where you review intermediate results
Stopping a Run
| Method | How |
|---|---|
| Button | Click Stop (enabled when running, paused, or suspended) |
| Keyboard | Esc |
Missing Models
If a node needs an AI model you haven’t installed:
- Click the “Missing Model” indicator on the node
- The Recommended Models dialog opens
- Click to install – runs in background while you work
Organizing Your Workflow
Auto Layout
Click the Auto Layout button (or press L) to automatically arrange your nodes in a clean, readable layout. The editor also auto-arranges nodes when Global Chat creates or modifies workflows.
Grouping Nodes
Select multiple nodes and press Ctrl/⌘ + G to group them. Groups:
- Keep related nodes together
- Can be collapsed to save space
- Move as a unit
Aligning Nodes
| Shortcut | Action |
|---|---|
A |
Align selected nodes |
Shift + A |
Align and distribute evenly |
Panels and Tabs
Multiple Workflows
- Open multiple workflows in tabs at the top
- Switch with
Ctrl/⌘ + 1-9or click the tab - Drag tabs to reorder
Left Panel
Access these views by clicking icons on the left:
| Icon | Panel | Purpose |
|---|---|---|
| 📂 | Workflows | Your saved workflows |
| 💬 | Chat | Global Chat |
| 📁 | Assets | Your files |
| 📚 | Collections | RAG document collections |
| 📦 | Packs | Installed node packs |
Right Panel (Inspector)
Press i to toggle the Inspector panel, which shows:
- Detailed properties for selected nodes
- Input/output documentation
- Validation errors and warnings
See Editor Panels → Right Panel for every tab (Inspector, Logs, Jobs, Agent, Trace, Version History, Workspace).
Finding Nodes

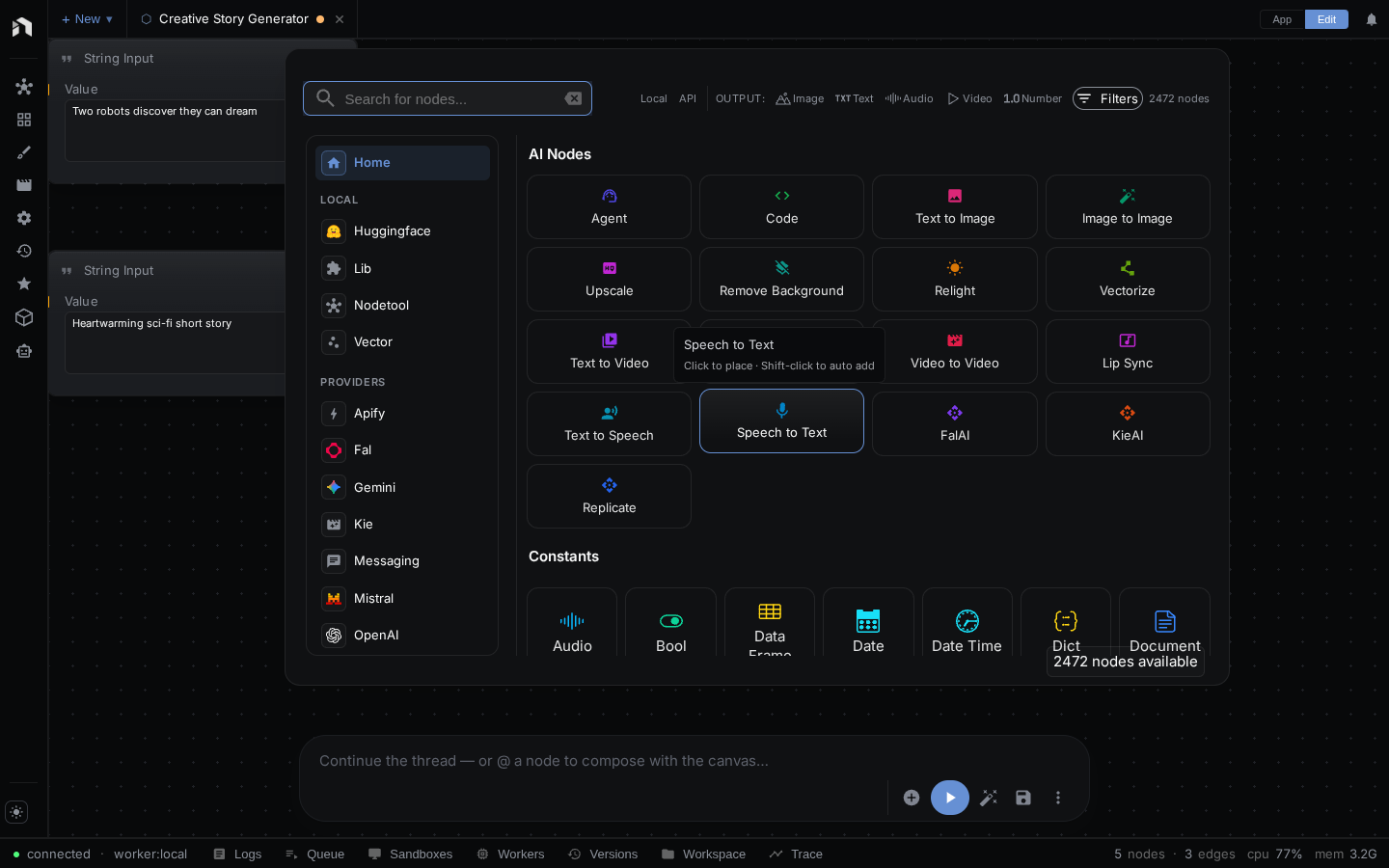

The Node Menu
Press Space to open, then:
- Search: Just start typing (“whisper”, “image”, “agent”)
- Browse: Explore the category tree on the left
- Filter: Click the filter icon to show only nodes with specific input/output types
- Move: Drag the menu to reposition it
- Close:
Escor click outside
Node Documentation
Get help on any node:
- In the Node Menu: Hover over a node to see its description
- On the canvas: Hover over the
?icon at the bottom-right of any node - Inspector: Select a node and view full documentation in the right panel

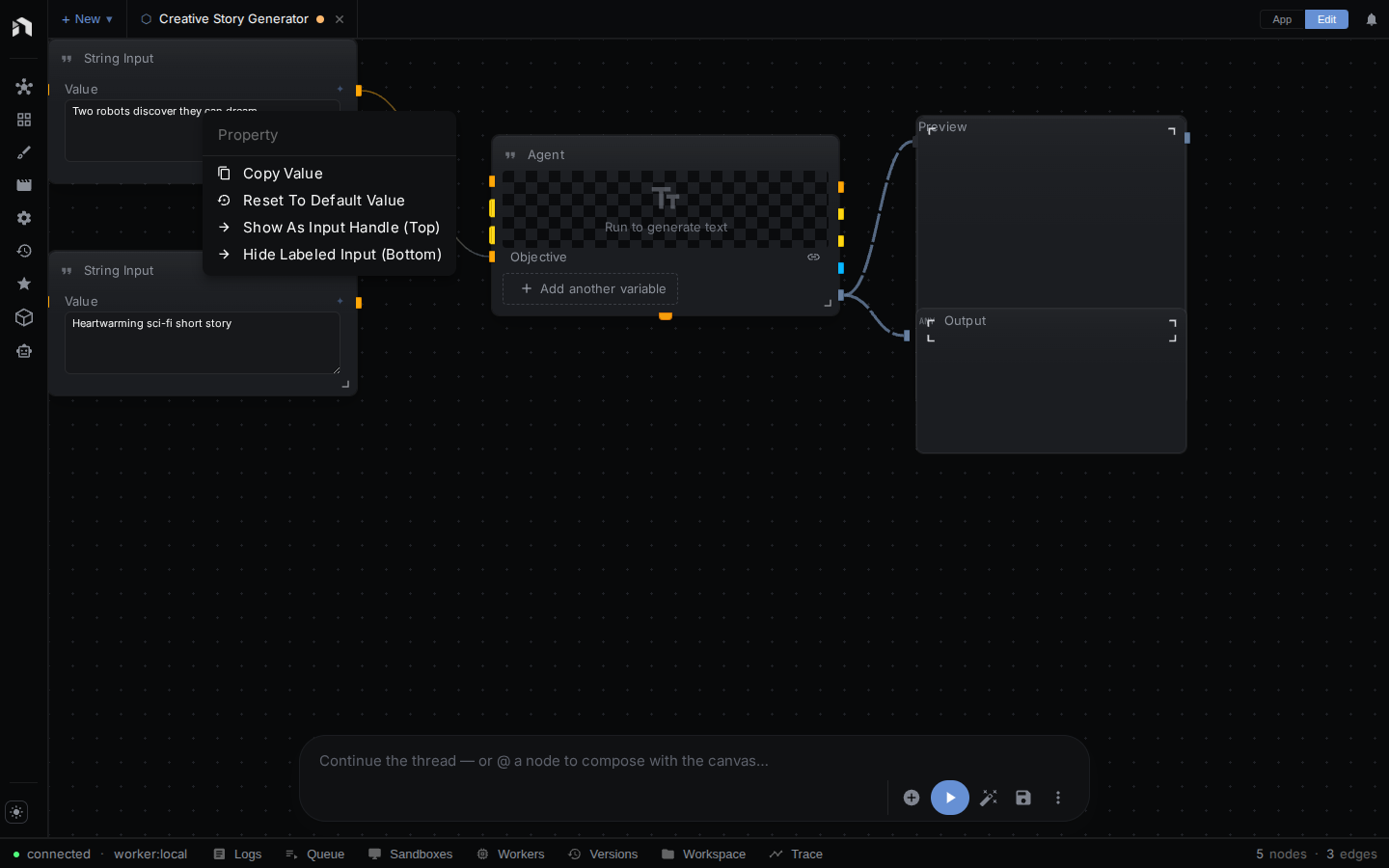

Context Menus
Right-click for options anywhere:
| Location | Options |
|---|---|
| Canvas | Add node, paste, select all |
| Node header | Copy, duplicate, delete, group, bypass |
| Input/Output | Disconnect, add compatible node |
| Connection | Delete, add node in middle |
Built-in Editors
NodeTool includes professional editing tools for creative work.
Image Editor
Click the edit icon on image outputs or properties to open the full-featured editor:
- Crop & Resize: Adjust image dimensions and composition
- Rotate & Flip: Transform orientation
- Draw Tools: Brush, shapes, and text overlays
- Adjustments: Brightness, contrast, saturation controls
- History: Undo/redo all changes
📖 Full Guide: See Image Editor for complete documentation with tool reference, shortcuts, and workflows.

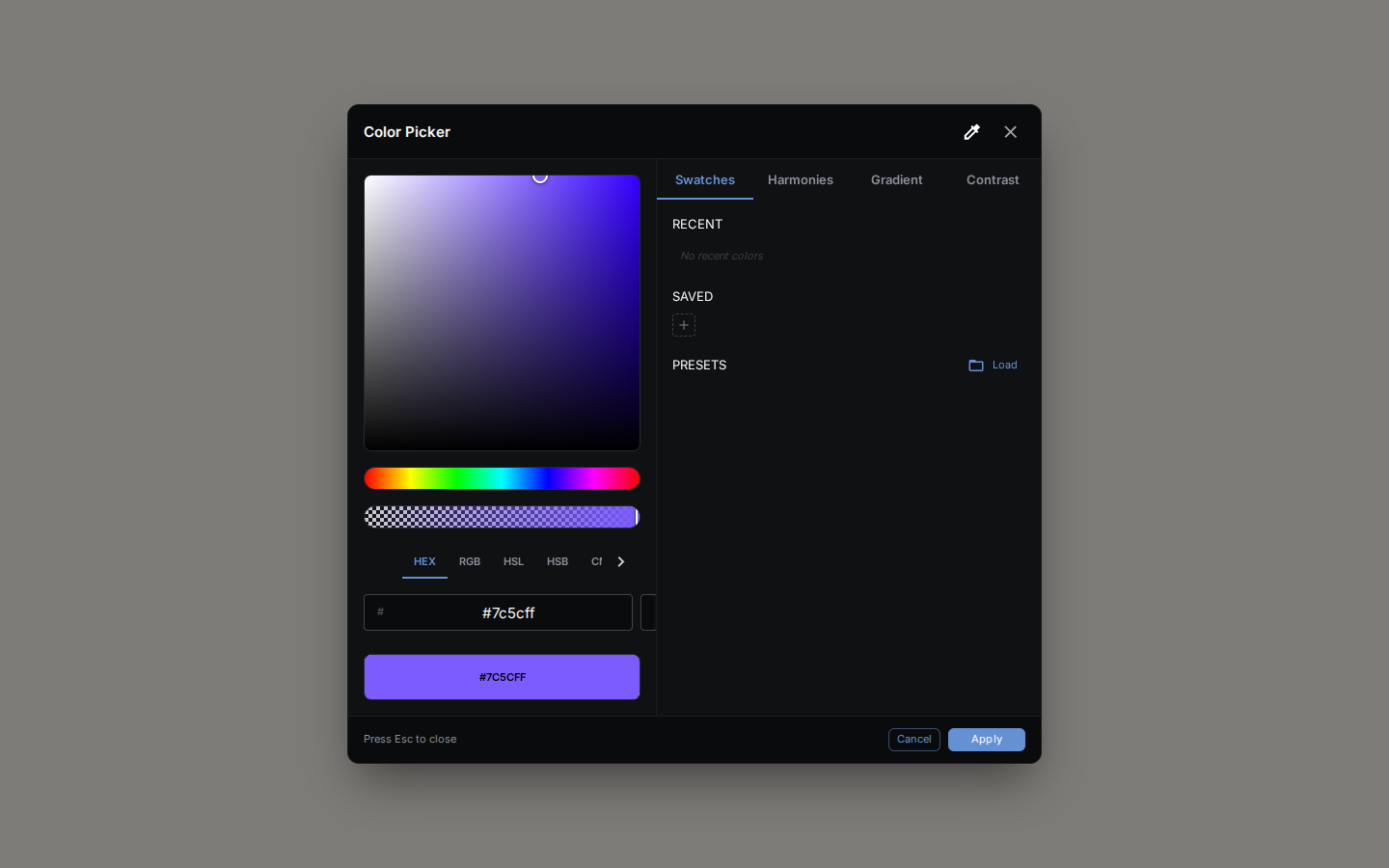

Color Picker
The professional color picker appears when selecting colors in properties:
- Visual Selection: Saturation/brightness picker with hue slider
- Multiple Formats: Enter values as HEX, RGB, or HSL
- Harmony Modes: Complementary, triadic, analogous color suggestions
- Gradient Builder: Create and edit color gradients
- Swatches: Save and reuse favorite colors
- Contrast Checker: Verify accessibility compliance
- Eyedropper: Pick colors from anywhere on screen
Keyboard Shortcuts
Essential Shortcuts
| Shortcut | Action |
|---|---|
Space |
Open node menu |
Ctrl/⌘ + Enter |
Run workflow |
Ctrl/⌘ + S |
Save |
Ctrl/⌘ + Z |
Undo |
F |
Fit view |
Esc |
Stop / Cancel |
All Editor Shortcuts
| Shortcut | Action |
|---|---|
Ctrl/⌘ + C |
Copy |
Ctrl/⌘ + V |
Paste |
Ctrl/⌘ + X |
Cut |
Ctrl/⌘ + D |
Duplicate horizontally |
Ctrl/⌘ + Shift + D |
Duplicate vertically |
Ctrl/⌘ + G |
Group selection |
Ctrl/⌘ + 0 |
Reset zoom to 100% |
Ctrl/⌘ + 1-9 |
Switch to tab 1-9 |
A |
Align selected nodes |
Shift + A |
Align and distribute |
Arrow keys |
Nudge selected nodes |
Delete / Backspace |
Delete selection |
i |
Toggle Inspector |
1-5 |
Open left panel menus |
Tips
Design Principles
- Left to right — Arrange nodes so data flows left to right across the canvas for readability
- Preview often — Add Preview nodes after each major step to inspect intermediate results
- Name clearly — Rename nodes (double-click the header) to describe their purpose, e.g., “Resize to 512px” instead of “Resize”
- Group logically — Keep related nodes together and use Groups (
Ctrl/⌘ + G) to visually organize complex workflows
Debugging
- Add Preview nodes between steps to see exactly what data each node produces
- Check connections — verify data types match (connection colors indicate type)
- Look at node borders — red = error, yellow = running, green = completed
- Test incrementally — bypass downstream nodes and run partial workflows to isolate problems
- Use the Inspector — press
ito see detailed error messages and validation warnings
Performance
- Local models — slower but work offline and are free to use
- Cloud models — faster response times, require internet and API keys
- Streaming nodes — show progress during long-running operations (look for the streaming indicator)
- Parallel branches — NodeTool automatically runs independent branches in parallel for faster execution
